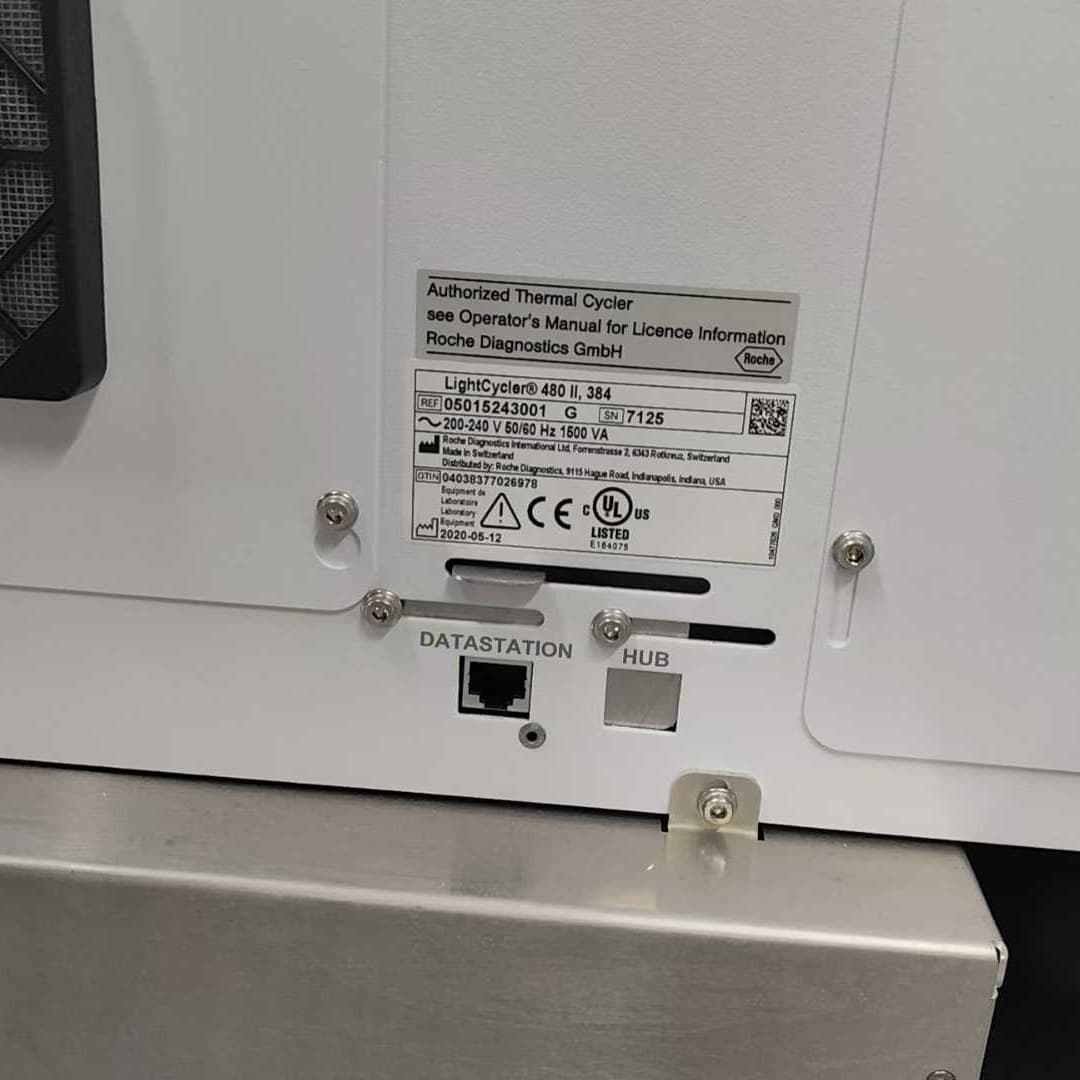

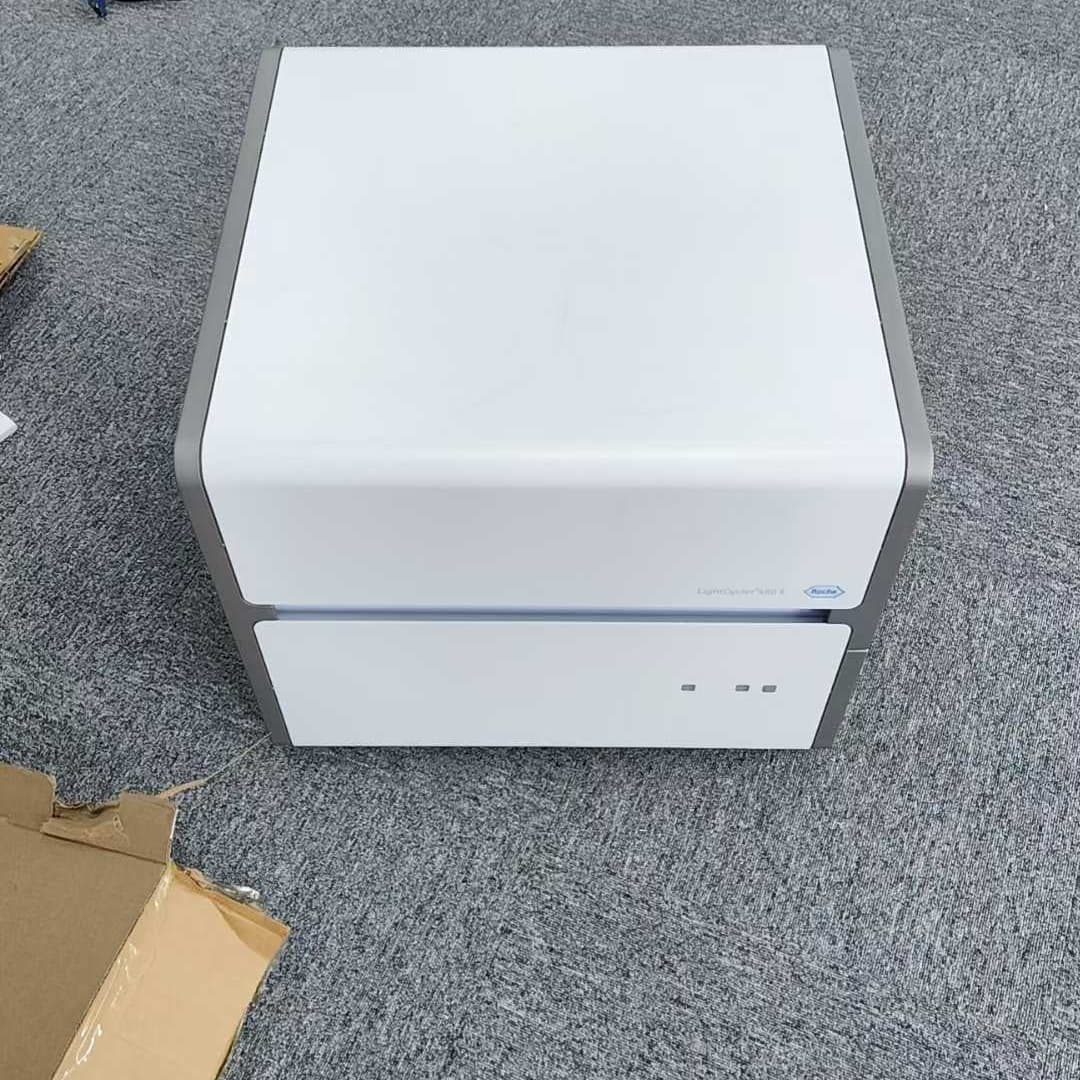

Roche LightCycler 480 Real-Time PCR System (384-well block)

The Roche LightCycler 480 II Real-Time PCR System, particularly configured with the 384-well block, stands as a cornerstone instrument in modern molecular biology and genomics research, offering a powerful combination of high-throughput capability, exceptional data accuracy, and operational versatility. Designed to meet the rigorous demands of gene expression analysis, genetic variation studies, and nucleic acid quantification, this benchtop thermal cycler integrates advanced Peltier-based heating and cooling technology with a high-performance optical detection system. The incorporation of a silver thermal block enhanced by Roche’s proprietary Therma-Base technology ensures unparalleled well-to-well temperature homogeneity, with a uniformity of ±0.1°C across the plate, effectively eliminating edge effects and guaranteeing highly reproducible results irrespective of sample position. This precise thermal control, coupled with rapid heating (up to 4.8°C/s for the 384-well block) and cooling rates, allows for the completion of a standard 40-cycle PCR run in approximately 40 minutes, significantly accelerating workflow efficiency. The 384-well format itself is a critical asset for laboratories processing large sample sets, such as in drug discovery screening, population genetics studies, or next-generation sequencing library quantification, where minimizing reaction volumes (5–20 µL) while maximizing data output is paramount. The system’s robust construction and reliable performance have made it a long-standing industry standard, trusted by researchers for applications requiring sensitive detection down to single-copy targets and a dynamic range spanning up to 10 orders of magnitude.

The optical system of the LightCycler 480 II is equally sophisticated, utilizing a high-intensity light source—either a xenon flash lamp or a long-life LED lamp depending on the specific configuration—paired with a cooled CCD camera to enable sensitive, multi-color fluorescence detection. The instrument supports up to six independent detection channels, which can be flexibly configured using a variety of excitation and emission filter combinations to accommodate a wide spectrum of fluorescent dyes and probe chemistries. This includes universally adopted formats such as SYBR Green I, hydrolysis probes (e.g., TaqMan), FRET-based hybridization probes (HybProbe, SimpleProbe), and specialized dyes for High-Resolution Melting (HRM) analysis like ResoLight. The ability to perform multiplex reactions, detecting several targets simultaneously in a single well, is seamlessly supported, streamlining assays for gene expression normalization, SNP genotyping, or pathogen identification. A significant advantage of the LightCycler 480’s optical design is its position-independent signal collection; the uniform illumination and detection path mean that raw fluorescence data requires no normalization against passive reference dyes (such as ROX) or separate normalization plates, simplifying assay setup and reducing potential sources of error. Furthermore, the system’s compatibility with both white and clear polypropylene plates offers flexibility to optimize signal-to-noise ratios based on the specific assay, with white plates generally enhancing fluorescence detection for low-abundance targets.

Complementing its hardware prowess is the intuitive and feature-rich LightCycler 480 Software, which provides a comprehensive suite for experiment design, real-time instrument control, and advanced data analysis. The software guides users through protocol setup with predefined or customizable cycling conditions, melt curve profiles, and acquisition settings, while offering real-time monitoring of amplification progress. Post-run, it delivers automated analysis capabilities including absolute and relative quantification (using the ΔΔCt method), endpoint genotyping, melting curve analysis, and high-resolution melting (HRM) for mutation scanning and methylation analysis. The HRM functionality is particularly noteworthy, allowing for the discrimination of single nucleotide polymorphisms (SNPs) and small sequence variations without the need for labeled probes, solely based on the high-resolution fluorescence melting profile of the amplicon. For laboratories operating under regulatory compliance, the software includes options for 21 CFR Part 11 compatibility, featuring audit trails, electronic signatures, and secure data management. The system’s architecture also supports integration into automated workflows, with interfaces available for robotic liquid handlers and Laboratory Information Management Systems (LIMS), including barcode-assisted plate identification. This level of integration, combined with the user-interchangeable thermal blocks (allowing swift switching between 96- and 384-well formats without recalibration), ensures the LightCycler 480 II remains a adaptable and productive centerpiece for diverse molecular biology laboratories, from academic core facilities to industrial R&D environments.
