Applied Biosystems QuantStudio™ 12K Flex Real-Time PCR System

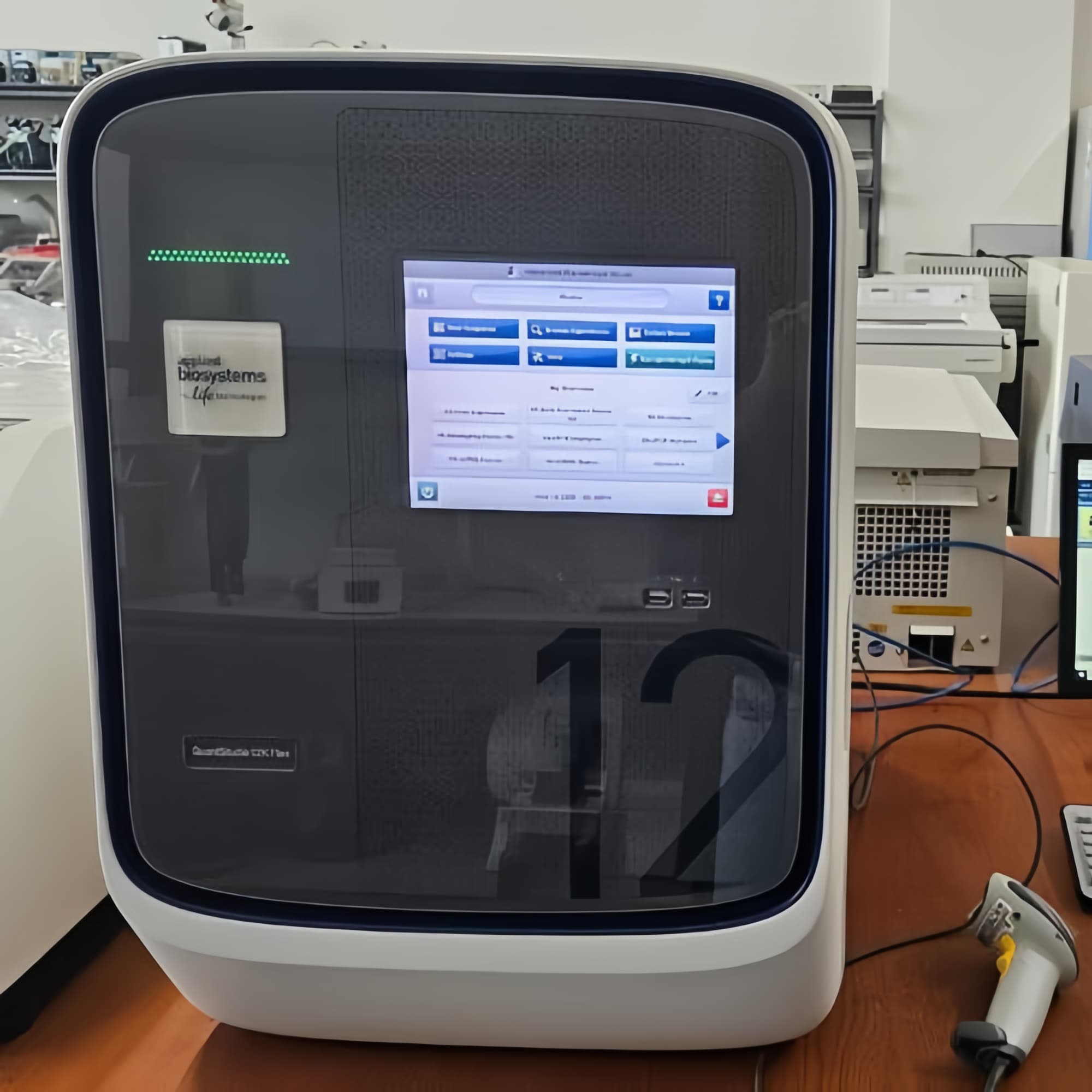

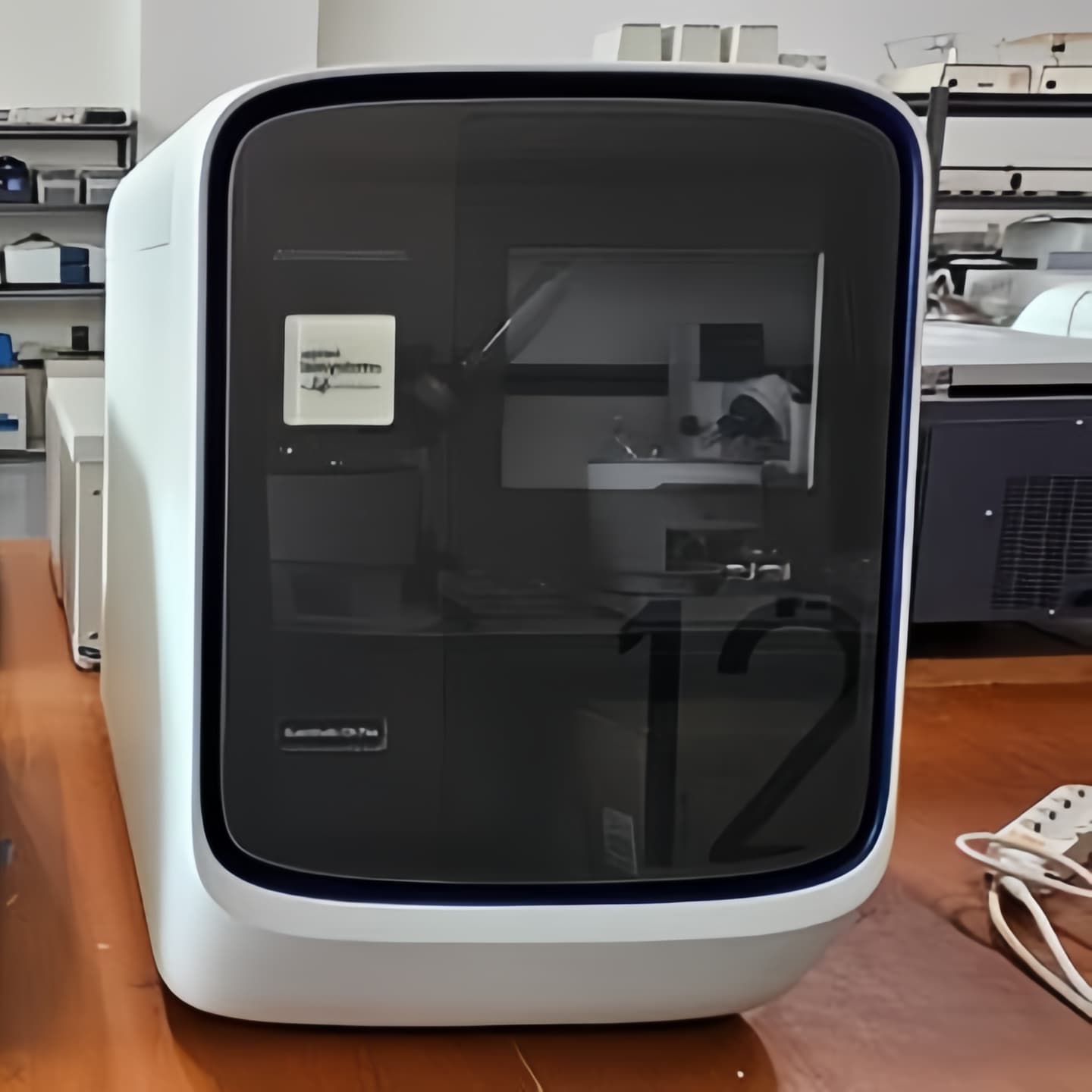

The Applied Biosystems QuantStudio 12K Flex Real-Time PCR System stands as a flagship instrument in the realm of quantitative polymerase chain reaction, meticulously engineered by Thermo Fisher Scientific to bridge the gap between ultimate flexibility and maximum throughput. Designed as a comprehensive, all-in-one platform, it caters to the evolving demands of modern genomics, clinical research, and applied markets by offering an unparalleled ability to scale experiments from a single reaction to 12,228 data points within a single run. At the heart of its design is a revolutionary modular block system; the instrument supports five interchangeable thermal block formats, including the 96-well standard, 96-well Fast, 384-well, TaqMan Array Card, and the high-density OpenArray plate, all of which can be swapped without the need for tools. This unique versatility ensures that laboratories can start their projects with low-to-medium throughput formats, such as the 96-well block for method development, and seamlessly scale up to the OpenArray format for high-throughput screening without investing in multiple standalone machines. When configured with the OpenArray block, the system can simultaneously run up to four 3,072-reaction plates in approximately four hours, and when integrated with the optional OpenArray AccuFill System, it is capable of generating over 110,000 data points within a standard eight-hour workday with merely 20 minutes of hands-on time per run. This massive throughput is powered by the enhanced OptiFlex system, a sophisticated optical engine that utilizes a robust white LED light source coupled with six excitation filters (ranging from 450 to 670 nm) and six emission filters (ranging from 500 to 720 nm). This configuration ensures precise fluorescence detection, supports up to six-color multiplexing with 21 possible dye combinations, and delivers a dynamic range of up to 9 logs (10 logs for non-OpenArray blocks) with a sensitivity capable of detecting down to a single copy of nucleic acid, guaranteeing reliable quantification across a vast spectrum of target concentrations.

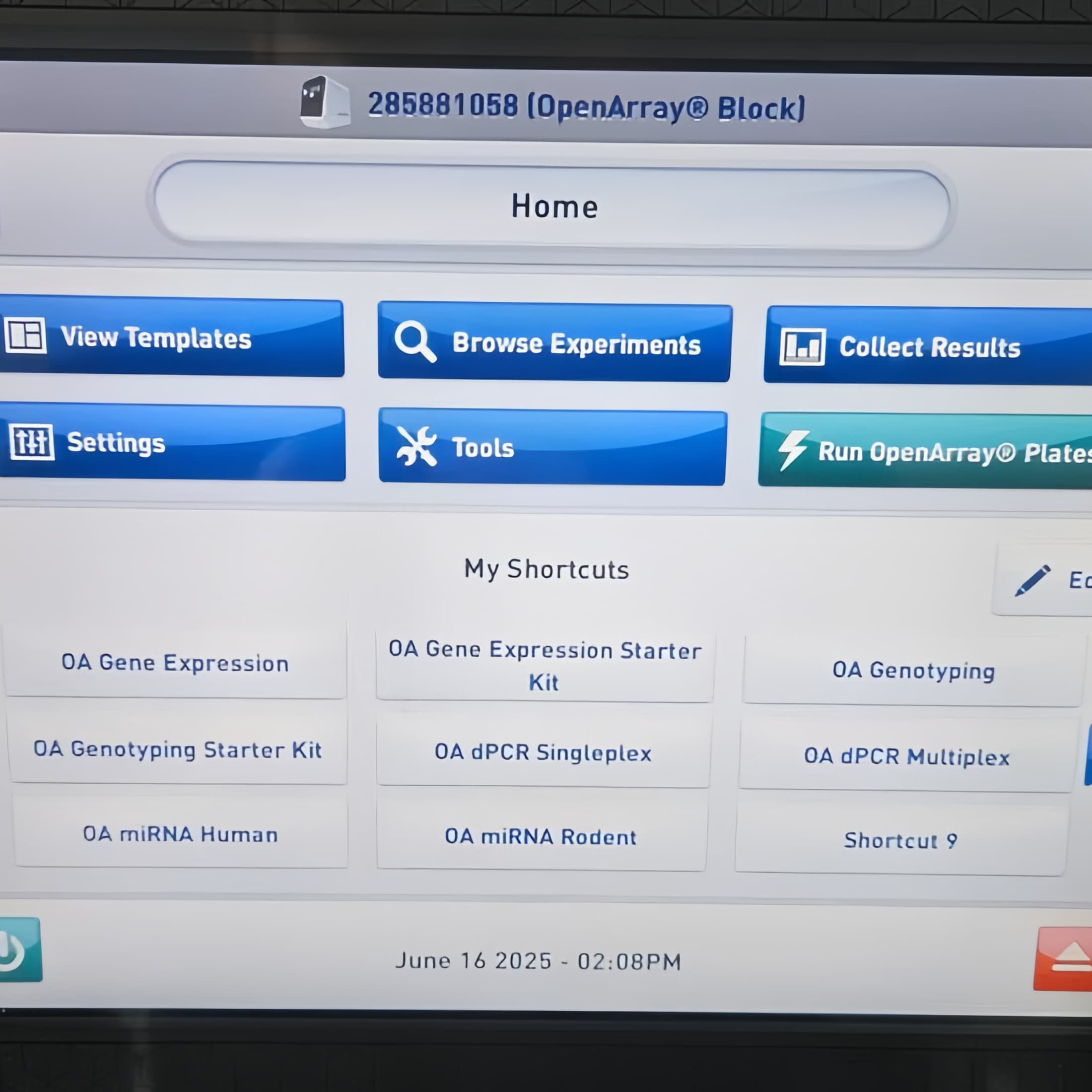

Operationally, the QuantStudio 12K Flex is built to maximize user productivity and integrate smoothly into high-demand laboratory workflows, featuring a large, intuitive full-function touchscreen interface that simplifies experiment setup, scheduling, and real-time monitoring directly at the instrument. The system is fully compatible with laboratory automation, including integration with the Thermo Scientific Orbitor RS2 Microplate Mover, which significantly reduces manual intervention and increases walk-away time for technicians. Its software ecosystem is equally robust, with the QuantStudio Real-Time PCR Software providing comprehensive tools for experiment design, data acquisition, and analysis, including specialized modules for gene expression, genotyping, and high-resolution melt (HRM) analysis. Furthermore, the system supports seamless connectivity to the Thermo Fisher Cloud, allowing researchers to securely store, analyze, and share data across different devices, and it is compatible with a full range of TaqMan Assays for applications spanning gene expression profiling, miRNA analysis, SNP genotyping, copy number variation, pathogen detection, and protein thermal shift assays. For laboratories operating in regulated environments, the instrument includes built-in features that assist with 21 CFR Part 11 compliance, such as user access controls, audit trails, and optional electronic signature packages, alongside full support for Laboratory Information Management Systems (LIMS) for streamlined sample tracking. The thermal cycler itself employs a high-quality Peltier-based system that ensures precise temperature control across a range of 4°C to 99.9°C, with a uniformity of ±0.5°C and an accuracy of ±0.25°C, alongside rapid ramp rates that accommodate both standard and fast PCR protocols. Additional user-centric features include remote run monitoring via email notifications, an onboard memory capable of storing over 100 runs, and programmable heated lid options, all of which contribute to a streamlined, error-reducing, and highly efficient workflow that empowers researchers to focus more on data interpretation and less on instrument management.

The true value of the QuantStudio 12K Flex lies in its ability to future-proof a laboratory’s investment by adapting to shifting research priorities without compromising on data quality or operational efficiency. Unlike fixed-format instruments that may become bottlenecks as project scopes expand, this system grows with the user, allowing a seamless transition from low-density screening to validating thousands of genomic targets in a single afternoon. The OpenArray format, in particular, has revolutionized genomic screening by condensing what used to take weeks of 384-well plate runs into a matter of days, with integrated sample tracking software ensuring that data integrity is maintained throughout high-volume processing. Moreover, the system facilitates a smooth transition from traditional qPCR to digital PCR workflows when using the OpenArray block in conjunction with QuantStudio Digital PCR kits and DigitalSuite Software, offering even greater precision and absolute quantification for low-abundance targets. Its compact footprint, measuring approximately 50.5 cm in width, 67.2 cm in depth, and 73.8 cm in height, belies its immense processing power, making it suitable for laboratories where bench space is at a premium. Whether utilized for large-scale population genomics studies, pharmacogenomic research, agricultural biotechnology trait screening, or routine diagnostic assay development, the QuantStudio 12K Flex delivers consistent, reproducible, and highly accurate results that meet the rigorous standards of peer-reviewed research and industrial validation. By combining extreme throughput capabilities with a highly flexible, user-friendly design and a mature, compliant software environment, Thermo Fisher Scientific has created a real-time PCR system that not only meets the current demands of the genomics era but is inherently equipped to handle the complexities of future molecular biology challenges, solidifying its position as a cornerstone instrument in any forward-thinking analytical or research laboratory.
