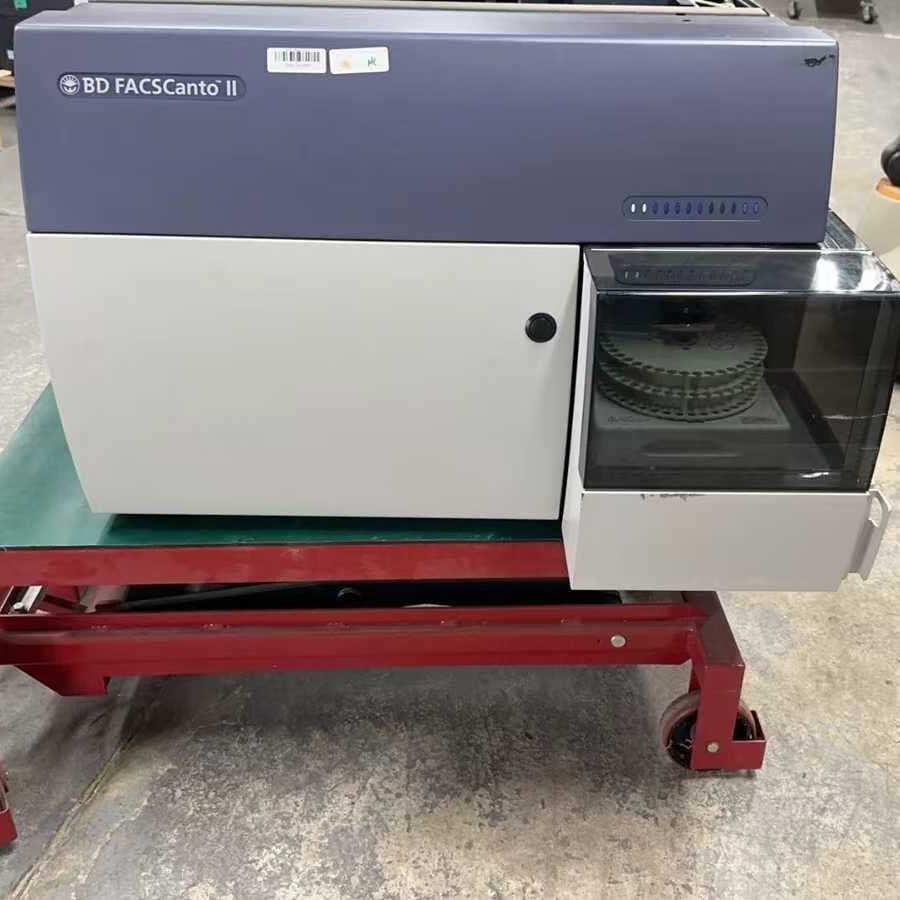

BD FACSCanto™ II Flow Cytometer

The BD FACSCanto™ II Flow Cytometer stands as one of the most widely recognized and relied-upon benchtop analyzers in the global life science and clinical diagnostics community, meticulously engineered by BD Biosciences to deliver robust, high-quality multicolor immunophenotyping and cell analysis with unparalleled ease of use. As a dedicated analysis-only platform (distinct from cell sorters like the FACSAria series), the FACSCanto II is designed to serve as the dependable "workhorse" for busy hospital laboratories, core facilities, and research institutes that require consistent, reproducible data day in and day out. Its core design philosophy centers on operational simplicity and instrument stability; featuring a patented fixed-alignment flow cell and a fully fixed optical path, the instrument requires absolutely no daily laser or mirror alignment by the user. The quartz flow cell is optically gel-coupled to a high numerical aperture objective lens, which maximizes fluorescence photon collection and significantly boosts sensitivity, achieving impressive detection limits such as < 100 MESF for FITC and < 50 MESF for PE. This "fixed" nature means that once the instrument is installed and qualified, it delivers stable performance with minimal user intervention, drastically reducing startup times to roughly 15–20 minutes and eliminating the technical variability often associated with traditional flow cytometers that require daily tuning. The system is highly configurable, offered in 2-laser (488 nm Blue, 633 nm Red) or 3-laser (adding a 405 nm Violet) setups, capable of detecting up to 8 distinct fluorescence parameters plus Forward Scatter (FSC) and Side Scatter (SSC), making it perfectly suited for standard 6-color or 8-color TBNK (T-cell, B-cell, NK-cell) immunophenotyping panels, as well as intracellular cytokine staining and cell cycle/apoptosis assays.

Beyond its rock-solid optical and fluidic foundation, the BD FACSCanto II excels in laboratory efficiency and data integrity through its intelligent automation features and specialized software ecosystems. For laboratories processing high volumes of samples, the optional BD FACS™ Loader or High Throughput Sampler (HTS) can be integrated, allowing for the automated, walk-away processing of 40-tube racks or 96/384-well plates. This automation includes automated mixing, sampling, and probe washing between runs, with an exceptionally low sample carryover of ≤ 0.1%, effectively preventing cross-contamination in sensitive clinical assays like HIV viral load monitoring or minimal residual disease (MRD) testing. The fluidics system itself is supported by an independent, mobile fluidics cart housing sheath, waste, and cleaning solutions, which performs automated start-up, shutdown, and cleaning cycles to maintain system hygiene and performance. On the data acquisition and analysis front, the instrument is driven by the industry-standard BD FACSDiva™ software, which provides an intuitive, template-based workflow for experiment setup, real-time acquisition, and compensation matrix management. For clinical environments, the dedicated BD FACSCanto™ Clinical Software offers IVD-cleared modules for specific assays such as lymphocyte subset enumeration (using BD Multitest reagents), HLA-B27 antigen detection, and stem cell enumeration. These clinical modules feature automated gating algorithms, predefined calculation protocols, and report generation tools that standardize the analysis process, reduce operator subjectivity, and ensure compliance with clinical laboratory regulations (such as 21 CFR Part 11 when configured appropriately). The digital signal processing electronics eliminate dead time and allow for flexible pulse geometry analysis (height, area, width) of all parameters, ensuring precise discrimination of doublets and aggregates, which is crucial for clean DNA cell cycle analysis and accurate viable cell counting.

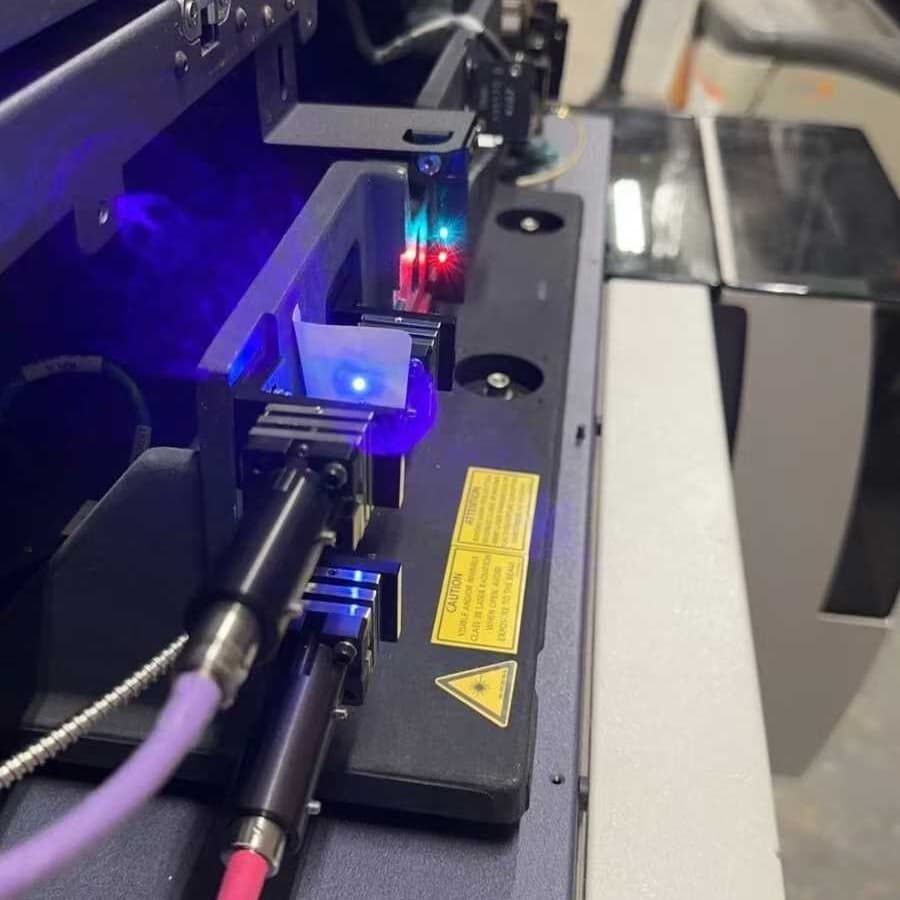

The enduring value of the BD FACSCanto II lies in its proven track record and its ability to bridge the gap between high-end research capabilities and routine diagnostic reliability, making it a cornerstone instrument in immunology, oncology, transplant monitoring, and infectious disease research. Its ability to handle small sample volumes (as low as 30 µL in a standard 12x75 mm tube) makes it highly advantageous for working with limited pediatric samples, fine needle aspirates, or rare patient biopsies. The optical layout, utilizing a unique octagon and trigon mirror configuration, efficiently directs scattered and fluorescent light to the corresponding photomultiplier tube (PMT) detectors, optimizing signal-to-noise ratios across the spectrum and ensuring that even dimly stained cell populations are resolved with high clarity. Furthermore, BD’s Instrument Performance Tracking (CS&T) system can be employed to run automated quality control checks using fluorescent beads, continuously monitoring key metrics like laser power, fluorescence sensitivity, and CV to ensure the instrument remains within specified performance limits and alerting users to any drift before it impacts experimental data. Whether utilized for monitoring immune reconstitution in HIV patients, characterizing tumor-infiltrating lymphocytes in cancer biopsies, assessing immunotoxicity in drug development, or conducting basic research on immune cell signaling, the BD FACSCanto II Flow Cytometer delivers the sensitivity, precision, and robustness required to generate trustworthy results. It is a platform that prioritizes user-friendliness and data consistency, empowering technicians and researchers alike to focus on the biological significance of their findings rather than the intricacies of instrument operation, solidifying its status as a gold-standard analyzer in the modern flow cytometry landscape.
