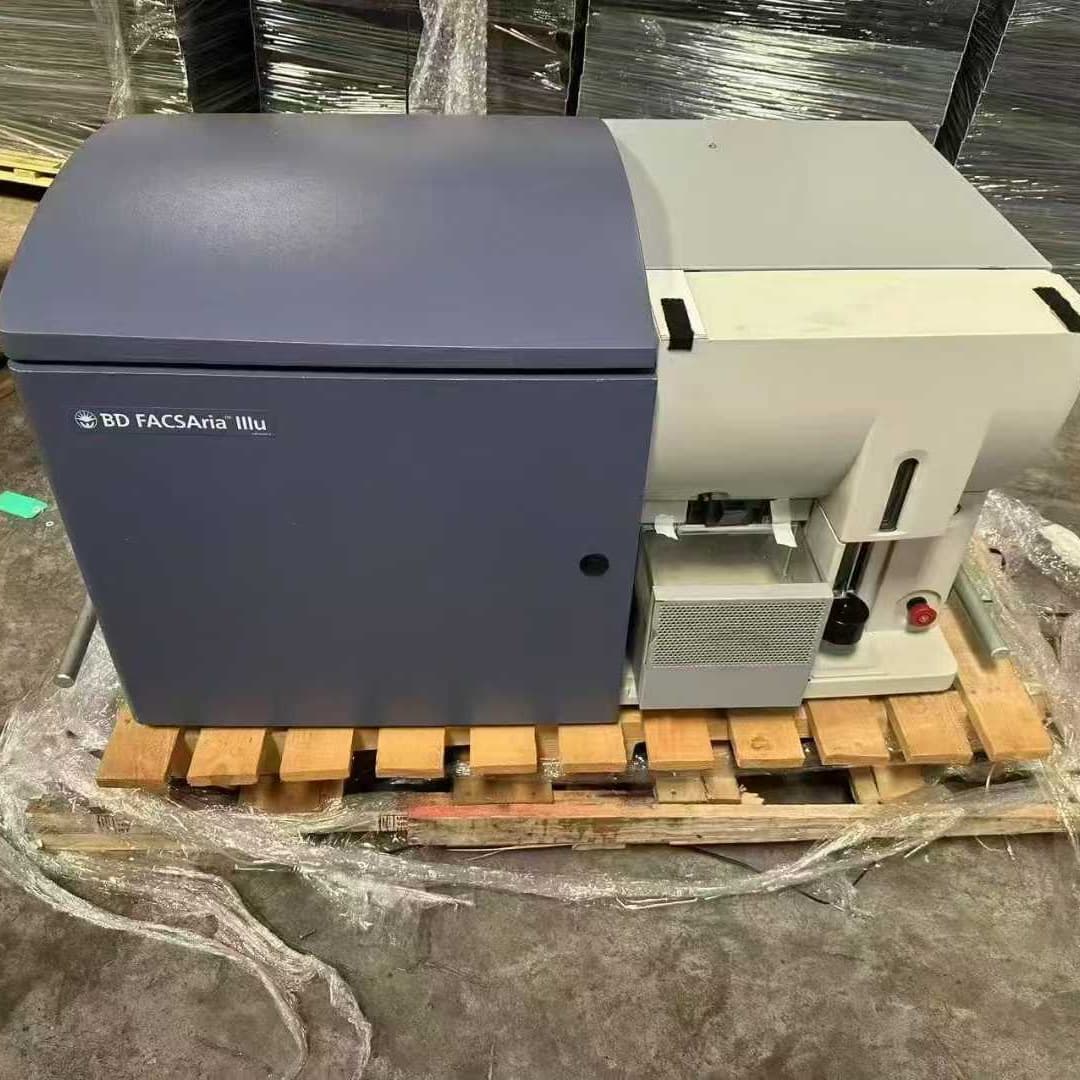

BD FACSAria™ IIIu 5-Laser 18-Color Cell Sorter

The BD FACSAria™ IIIu 5-Laser 18-Color Cell Sorter represents the pinnacle of high-speed, high-parameter cell sorting technology, meticulously engineered by BD Biosciences to meet the most demanding requirements of modern immunology, cancer research, stem cell biology, and clinical translational science. As a flagship model in the renowned FACSAria series, the IIIu variant is specifically optimized for aseptic operations, featuring a built-in HEPA filtration system that maintains a Class 100 (ISO 5) positive pressure environment around the sort chamber, ensuring that isolated cells remain sterile and viable for downstream culture, functional assays, or animal model engraftment. The defining strength of this configuration lies in its expansive optical deck, which integrates five spatially separated air-cooled solid-state lasers—typically 355 nm (UV), 405 nm (Violet), 488 nm (Blue), 561 nm (Yellow-Green), and 640 nm (Red)—to excite and simultaneously detect up to 18 distinct fluorescence parameters alongside Forward Scatter (FSC) and Side Scatter (SSC). This 20-parameter capability allows researchers to design incredibly complex, information-rich panels that can delineate highly nuanced cell subsets, such as distinguishing multiple T-cell helper subsets (Th1, Th2, Th17, Treg), identifying rare circulating tumor cells, or profiling over fifteen surface and intracellular markers on a single hematopoietic stem cell. By moving beyond traditional 8 or 10 color limitations, the 18-color capacity enables a "single-tube" approach to complex phenotyping, drastically reducing the amount of precious sample (e.g., limited CSF, fine needle aspirates, or sorted bone marrow) required for comprehensive analysis and eliminating inter-tube variability.

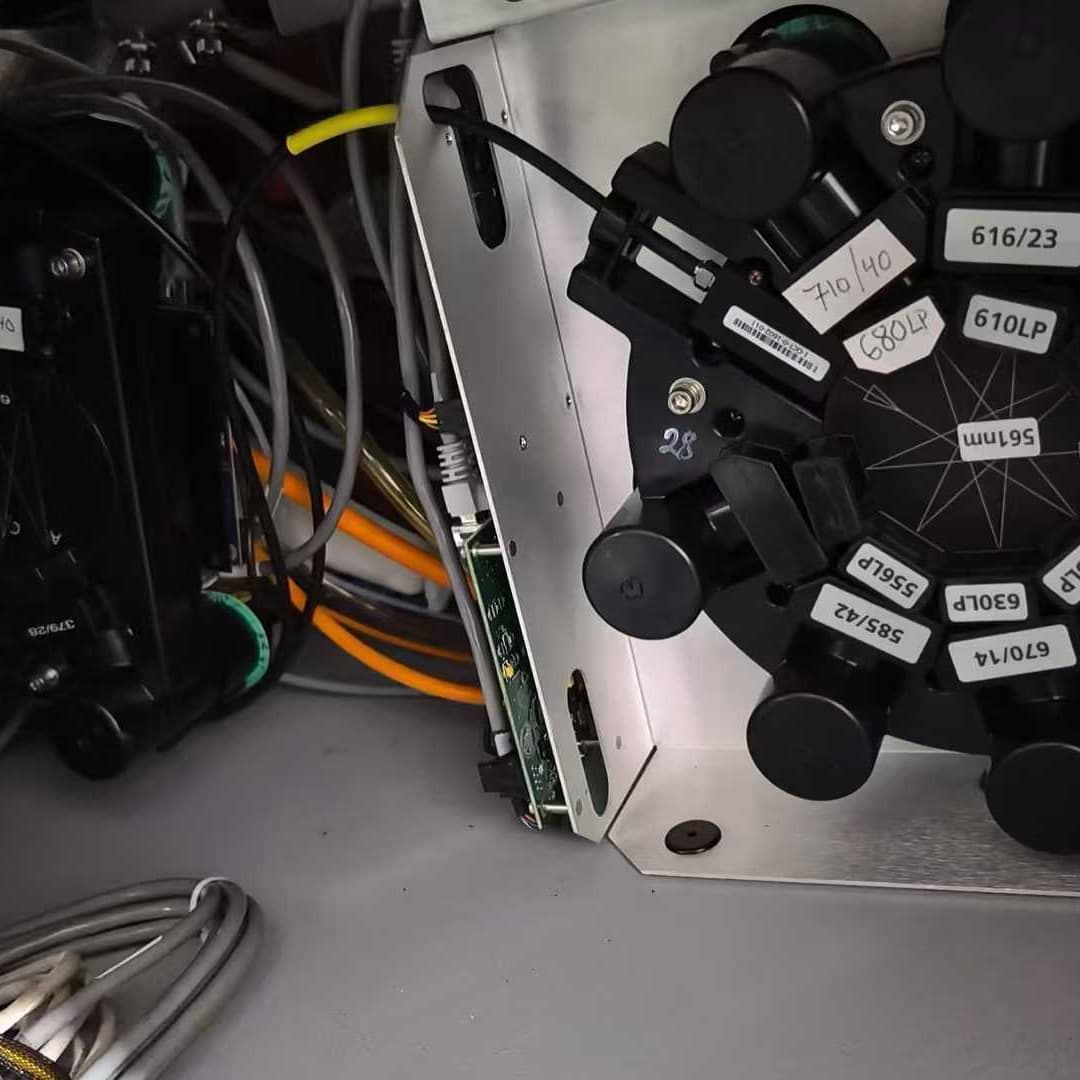

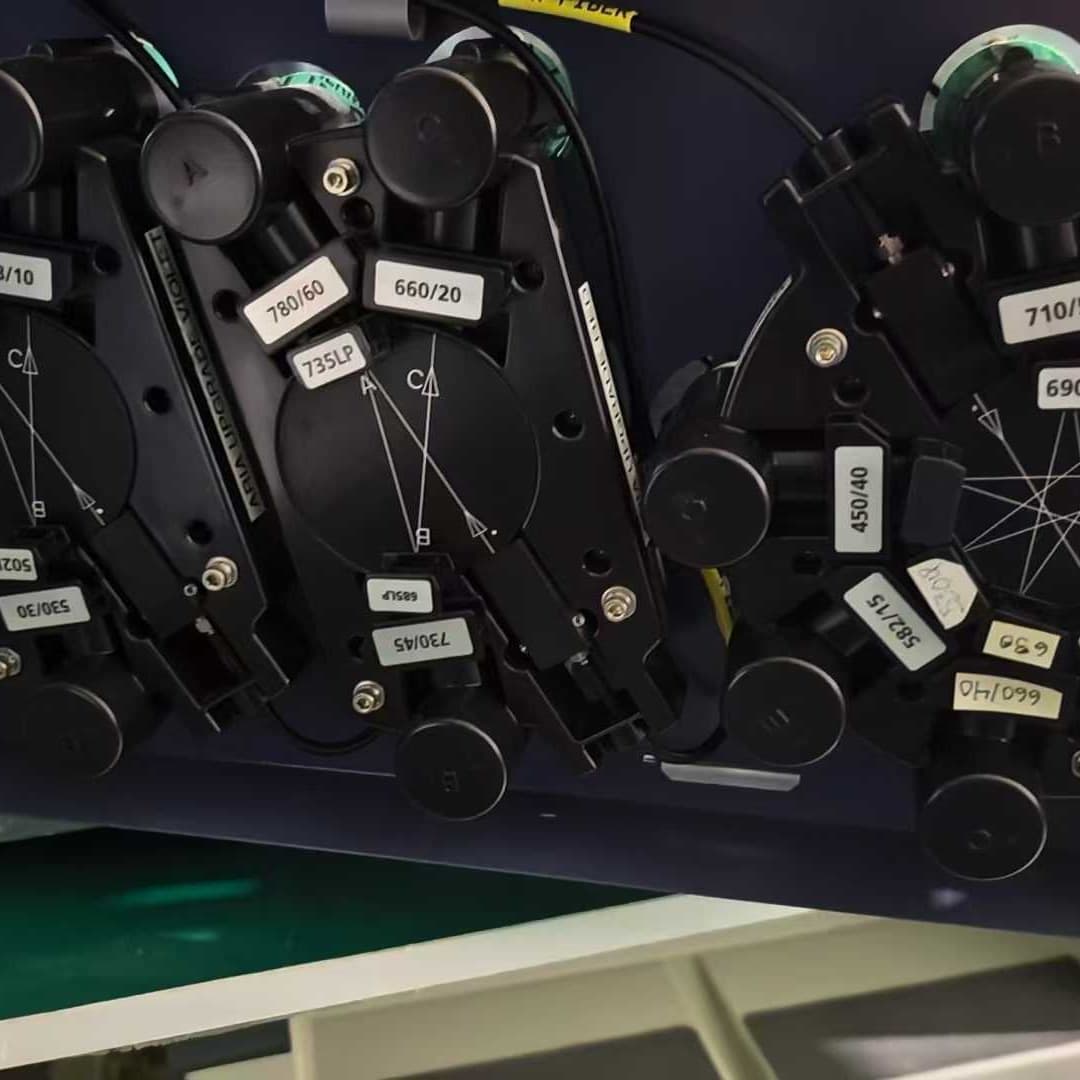

Central to the superior performance of the BD FACSAria IIIu is its proprietary fixed-alignment cuvette flow cell and advanced optical detection geometry. Unlike "jet-in-air" systems where cells are excited outside the stream, the IIIu utilizes a quartz cuvette flow cell where the laser interrogation point is optically coupled (gel-coupled) to a high numerical aperture objective lens. This design maximizes fluorescence photon collection efficiency and significantly enhances sensitivity, achieving impressive detection limits such as < 85 MESF for FITC and < 29 MESF for PE, which is critical for resolving dimly expressing antigens or detecting low-abundance signaling molecules. The optical path is factory-aligned and permanently fixed, meaning the instrument requires no daily alignment or calibration by the user; it is truly a "turn-on-and-run" system that ensures exceptional inter-run reproducibility and minimizes operator-induced variability. The light collection system employs a unique octagon and trigon configuration of mirrors and filters that directs scattered and fluorescent light to dedicated photomultiplier tube (PMT) detectors, optimizing signal-to-noise ratios across the entire spectral range. Complementing this optical stability is the robust fluidics system, which includes a modular fluidics cart housing sheath, waste, and cleaning solutions. The system supports multiple nozzle sizes (70, 85, 100, and 130 µm), which are user-interchangeable to accommodate cells ranging from small bacteria and platelets to large cardiomyocytes or plant protoplasts, ensuring gentle handling to maintain high post-sort viability (often > 95%). The BD FACS™ AccuDrop technology further refines the sorting precision by using a red diode laser to automatically detect the break-off point of the stream and calculate the exact droplet delay time, removing the guesswork and potential errors associated with manual calibration.

The operational workflow of the BD FACSAria IIIu is seamlessly managed by the industry-standard BD FACSDiva™ software, which provides an intuitive, wizard-driven interface for experiment setup, compensation matrix calculation, real-time acquisition, and sorting logic definition. The software supports Index Sorting, a powerful feature that records the complete multidimensional data signature of every single cell as it is deposited into a well plate, allowing researchers to trace back the phenotype of a specific clone or colony to its original measured parameters—an invaluable tool for single-cell sequencing library preparation and monoclonal antibody generation. For high-throughput needs, the optional Automated Cell Deposition Unit (ACDU) allows for the precise sorting of single cells into 6, 24, 96, or 384-well plates, as well as onto slides, with high accuracy and speed. The instrument boasts formidable throughput capabilities, with an analysis rate of up to 100,000 events per second and a sort rate of up to 70,000 events per second, making it highly effective for enriching rare cell populations (e.g., 0.001% frequency) from bulk tissues. Safety and automation features such as the Sweet Spot™ monitoring system continuously track the stability of the droplet stream and can automatically pause the sort if anomalies are detected, protecting both the sample and the instrument. Furthermore, the Instrument Performance Tracking (CS&T) module automates daily quality control checks using fluorescent beads, tracking key performance metrics over time to ensure the system remains within specification and alerting users to potential drifts. Whether utilized for isolating CAR-T cells for immunotherapy, purifying pluripotent stem cells, performing high-parameter immune monitoring in clinical trials, or conducting fundamental research into cell signaling networks, the BD FACSAria IIIu 5-Laser 18-Color Cell Sorter delivers unmatched sensitivity, purity, and flexibility. It stands as a cornerstone instrument for any core facility or research laboratory aiming to push the boundaries of single-cell analysis and isolation in the era of high-dimensional biology.

 As a flagship model in the renowned FACSAria series, the IIIu variant is specifically optimized for aseptic operations, featuring a built-in HEPA filtration system that maintains a Class 100 (ISO 5) positive pressure environment around the sort chamber, ensuring that isolated cells remain sterile and viable for downstream culture, functional assays, or animal model engraftment. The defining strength of this configuration lies in its expansive optical deck, which integrates five spatially separated air-cooled solid-state lasers—typically 355 nm (UV), 405 nm (Violet), 488 nm (Blue), 561 nm (Yellow-Green), and 640 nm (Red)—to excite and simultaneously detect up to 18 distinct fluorescence parameters alongside Forward Scatter (FSC) and Side Scatter (SSC). This 20-parameter capability allows researchers to design incredibly complex, information-rich panels that can delineate highly nuanced cell subsets, such as distinguishing multiple T-cell helper subsets (Th1, Th2, Th17, Treg), identifying rare circulating tumor cells, or profiling over fifteen surface and intracellular markers on a single hematopoietic stem cell. By moving beyond traditional 8 or 10 color limitations, the 18-color capacity enables a "single-tube" approach to complex phenotyping, drastically reducing the amount of precious sample (e.g., limited CSF, fine needle aspirates, or sorted bone marrow) required for comprehensive analysis and eliminating inter-tube variability.

Central to the superior performance of the BD FACSAria IIIu is its proprietary fixed-alignment cuvette flow cell and advanced optical detection geometry. Unlike "jet-in-air" systems where cells are excited outside the stream, the IIIu utilizes a quartz cuvette flow cell where the laser interrogation point is optically coupled (gel-coupled) to a high numerical aperture objective lens. This design maximizes fluorescence photon collection efficiency and significantly enhances sensitivity, achieving impressive detection limits such as < 85 MESF for FITC and < 29 MESF for PE, which is critical for resolving dimly expressing antigens or detecting low-abundance signaling molecules. The optical path is factory-aligned and permanently fixed, meaning the instrument requires no daily alignment or calibration by the user; it is truly a "turn-on-and-run" system that ensures exceptional inter-run reproducibility and minimizes operator-induced variability. The light collection system employs a unique octagon and trigon configuration of mirrors and filters that directs scattered and fluorescent light to dedicated photomultiplier tube (PMT) detectors, optimizing signal-to-noise ratios across the entire spectral range. Complementing this optical stability is the robust fluidics system, which includes a modular fluidics cart housing sheath, waste, and cleaning solutions. The system supports multiple nozzle sizes (70, 85, 100, and 130 µm), which are user-interchangeable to accommodate cells ranging from small bacteria and platelets to large cardiomyocytes or plant protoplasts, ensuring gentle handling to maintain high post-sort viability (often > 95%). The BD FACS™ AccuDrop technology further refines the sorting precision by using a red diode laser to automatically detect the break-off point of the stream and calculate the exact droplet delay time, removing the guesswork and potential errors associated with manual calibration.

The operational workflow of the BD FACSAria IIIu is seamlessly managed by the industry-standard BD FACSDiva™ software, which provides an intuitive, wizard-driven interface for experiment setup, compensation matrix calculation, real-time acquisition, and sorting logic definition. The software supports Index Sorting, a powerful feature that records the complete multidimensional data signature of every single cell as it is deposited into a well plate, allowing researchers to trace back the phenotype of a specific clone or colony to its original measured parameters—an invaluable tool for single-cell sequencing library preparation and monoclonal antibody generation. For high-throughput needs, the optional Automated Cell Deposition Unit (ACDU) allows for the precise sorting of single cells into 6, 24, 96, or 384-well plates, as well as onto slides, with high accuracy and speed. The instrument boasts formidable throughput capabilities, with an analysis rate of up to 100,000 events per second and a sort rate of up to 70,000 events per second, making it highly effective for enriching rare cell populations (e.g., 0.001% frequency) from bulk tissues. Safety and automation features such as the Sweet Spot™ monitoring system continuously track the stability of the droplet stream and can automatically pause the sort if anomalies are detected, protecting both the sample and the instrument. Furthermore, the Instrument Performance Tracking (CS&T) module automates daily quality control checks using fluorescent beads, tracking key performance metrics over time to ensure the system remains within specification and alerting users to potential drifts. Whether utilized for isolating CAR-T cells for immunotherapy, purifying pluripotent stem cells, performing high-parameter immune monitoring in clinical trials, or conducting fundamental research into cell signaling networks, the BD FACSAria IIIu 5-Laser 18-Color Cell Sorter delivers unmatched sensitivity, purity, and flexibility. It stands as a cornerstone instrument for any core facility or research laboratory aiming to push the boundaries of single-cell analysis and isolation in the era of high-dimensional biology.
