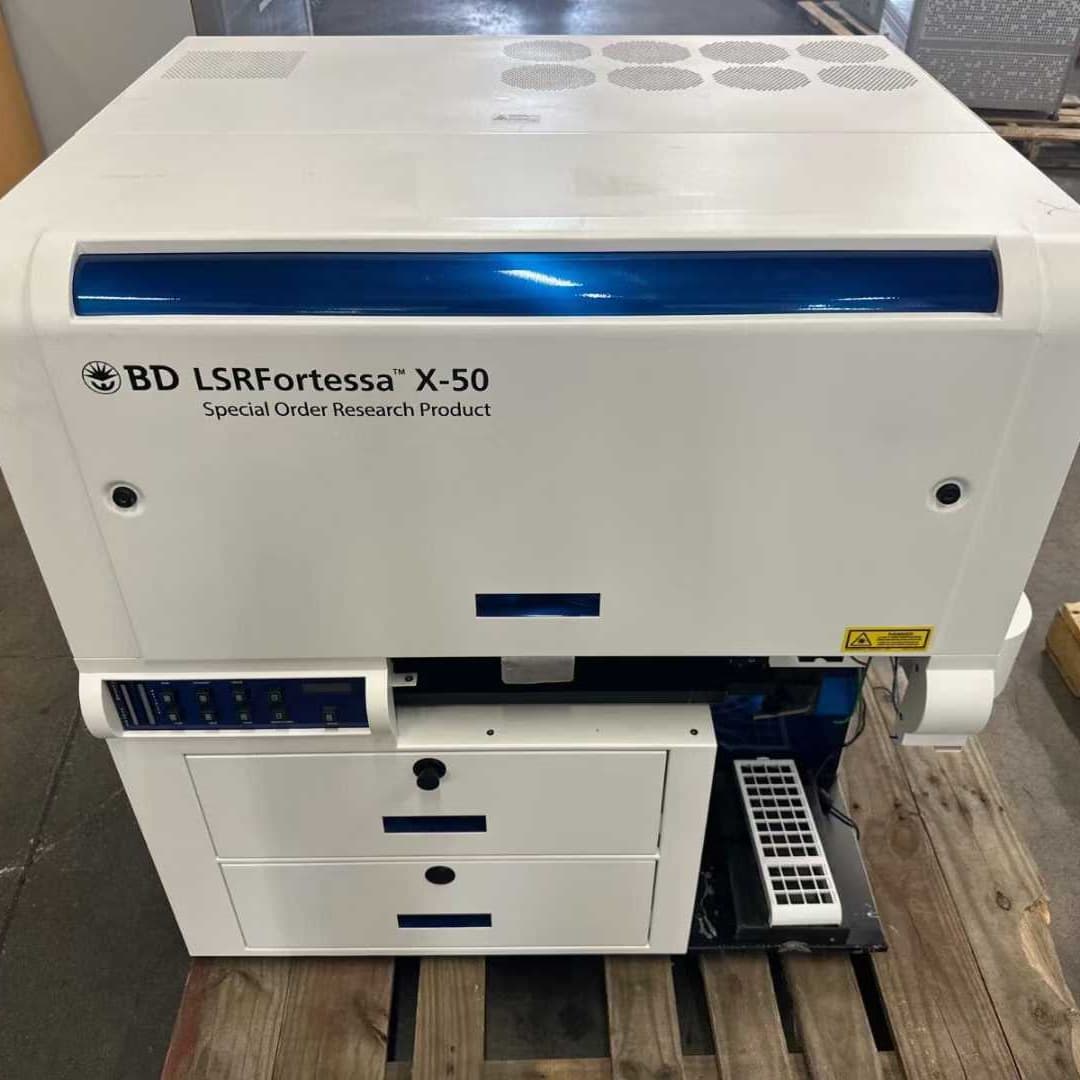

BD LSRFortessa™ X-50 5-Laser 30-Color Flow Cytometer

The BD LSRFortessa™ X-50 5-Laser 30-Color Flow Cytometer stands as the pinnacle of high-parameter analytical flow cytometry, engineered by BD Biosciences to push the boundaries of single-cell phenotyping and functional analysis. As a dedicated analyzer without physical sorting capabilities, its core mission is to provide the deepest possible insights into cellular complexity, allowing researchers to move far beyond simple subset identification into the realm of systems immunology and high-dimensional biology. The "X-50" designation highlights its status as the most advanced configuration in the LSRFortessa lineage, specifically optimized for extreme multicolor panels. By integrating five spatially separated air-cooled solid-state lasers—typically covering the ultraviolet (355 nm), violet (405 nm), blue (488 nm), yellow-green (561 nm), and red (640 nm) spectra—the system can simultaneously excite and detect up to 30 distinct fluorescence parameters alongside Forward Scatter (FSC) and Side Scatter (SSC). This 32-parameter capacity enables the design of extraordinarily comprehensive antibody panels that can map over twenty surface markers, multiple intracellular cytokines, phosphorylation sites, transcription factors, and viability dyes all within a single tube. Such capability is indispensable for dissecting the intricate heterogeneity of the immune system, characterizing the tumor microenvironment, tracking stem cell differentiation, or profiling cytokine storms, effectively allowing scientists to generate a complete "multi-omic" snapshot of cellular identity and function from minimal sample volumes.

Central to the exceptional performance of the LSRFortessa X-50 is its sophisticated Modular Optics System (MOS) and high-efficiency detection architecture. Unlike traditional analyzers with fixed optical paths, the MOS allows for a highly customizable arrangement of dichroic mirrors and bandpass filters. This means laboratories can precisely tailor the light collection path to match their specific dye combinations, maximizing signal capture for critical dim markers while minimizing spectral overlap and crosstalk. The fluorescence signals are collected via a gel-coupled quartz flow cell, which ensures that the laser is precisely focused on the sample stream and that the maximum amount of emitted photons is directed into the unique octagon and trigon mirror collection paths leading to the high-quantum-efficiency Photomultiplier Tube (PMT) detectors. This fixed-alignment flow cell requires no daily user alignment, guaranteeing exceptional instrument-to-instrument reproducibility and drastically reducing setup time to mere minutes. The sensitivity of the system is industry-leading, with detection limits such as < 80 MESF for FITC, < 30 MESF for PE, and < 70 MESF for APC, and a fluorescence resolution CV of less than 3% for PI-stained chicken erythrocyte nuclei. This high sensitivity is crucial for resolving dimly expressing intracellular targets, such as phosphorylated signaling proteins (pSTATs) or nuclear transcription factors (like FoxP3 in regulatory T cells), ensuring that rare and subtle cell populations are not missed due to instrumental noise. The digital electronics process data at speeds up to 70,000 events per second, maintaining data integrity even with high-event-rate samples, while the fluidics system offers continuously adjustable flow rates to gently handle fragile primary cells or rapidly process high-concentration samples.

The operational workflow of the BD LSRFortessa X-50 is seamlessly managed by the BD FACSDiva™ software, the universal control platform across the BD FACS instrument family, which facilitates effortless method transfer between analyzers and sorters. The software provides intuitive tools for experiment setup, real-time acquisition, automated compensation matrix generation, and complex multidimensional data analysis. For high-throughput environments, the optional BD High Throughput Sampler (HTS) can be integrated, enabling fully automated walk-away processing of 96-well and 384-well plates with minimal sample carryover (< 0.5%), which is vital for large cohort studies, drug screening, or vaccine development. Quality assurance is streamlined through the Instrument Performance Tracking (CS&T) module, which uses fluorescent beads to establish baseline settings and monitor key performance indicators like laser power, sensitivity, and CV over time, alerting users to any drift before it impacts experimental data. The fluidics are supported by an optional mobile cart with large-volume sheath and waste containers (up to 20L each), reducing the frequency of daily maintenance and ensuring stable hydraulic pressure during long runs. Whether utilized for deep immune profiling in COVID-19 and other infectious diseases, functional assays in immuno-oncology (like checking PD-1/PD-L1 expression and granzyme B production), or mechanistic studies in autoimmunity and allergy, the BD LSRFortessa X-50 5-Laser 30-Color Flow Cytometer delivers unmatched flexibility, sensitivity, and reliability. It is not merely an instrument but a comprehensive analytical platform that empowers researchers to ask more complex biological questions and obtain clearer, more definitive answers, solidifying its role as the cornerstone of any advanced flow cytometry core facility or cutting-edge research laboratory.
