Thermo Scientific™ Qubit™ 4 Fluorometer – Product Introduction

The 2022 Thermo Scientific™ Invitrogen™ Qubit™ 4 Fluorometer is a next-generation benchtop fluorescence quantification system designed for ultra-precise measurement of DNA, RNA, and protein concentration in molecular biology and life science laboratories. As one of the most widely used nucleic acid quantification instruments worldwide, the Qubit 4 combines high sensitivity, rapid analysis, and user-friendly operation in a compact footprint.

Unlike UV spectrophotometers, the Qubit 4 uses fluorescent dye-based detection, which significantly improves accuracy by selectively binding to target molecules and reducing interference from contaminants such as salts, proteins, or solvents. This makes it especially suitable for applications requiring high precision, such as next-generation sequencing (NGS), PCR, cloning, and transcriptomics workflows.

Core Performance and Functionality

The Qubit 4 Fluorometer is designed to deliver results in less than 3–5 seconds per sample, enabling rapid workflow throughput in busy laboratories. It supports a wide dynamic range of up to five orders of magnitude, allowing accurate quantification of both low-concentration and high-concentration samples without repeated dilution steps.

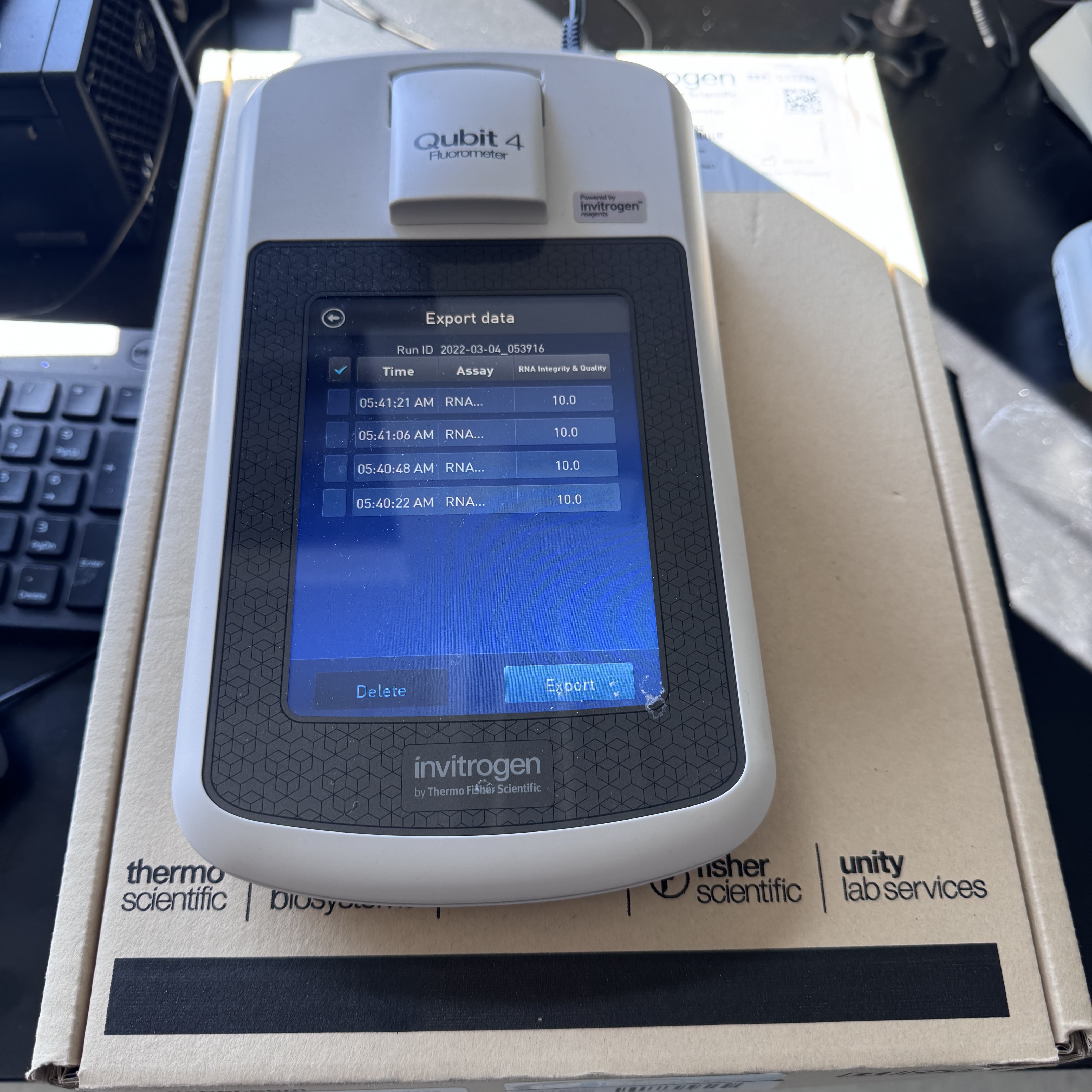

The system features a 5.7-inch color touchscreen interface, offering intuitive navigation through assay selection, calibration, and result interpretation. Users simply insert a prepared Qubit assay tube, select the assay type, and obtain direct concentration readings displayed in real time.

One of the most important upgrades in the 2022 Qubit 4 model is its enhanced data connectivity system, including USB transfer and optional Wi-Fi capability. This allows seamless integration with laboratory information systems (LIMS) or cloud-based platforms for data storage and analysis.

Additionally, the instrument includes the MyQubit™ assay design tool, which enables users to create custom assays by defining fluorescence parameters and uploading assay configurations via USB. This expands the system beyond standard DNA/RNA/protein quantification, supporting specialized biochemical applications.

Application Versatility

The Qubit 4 is widely used in:

• DNA quantification for NGS library preparation

• RNA quality and integrity assessment (RNA IQ assay)

• Protein concentration measurement

• PCR and qPCR sample preparation

• Molecular cloning workflows

• Biopharmaceutical and clinical research

• Enzyme and metabolite fluorescence assays

Its high specificity makes it superior to absorbance-based methods, particularly for low-concentration samples where sensitivity is critical.

Operational Efficiency and Workflow

The Qubit 4 system is optimized for simplicity and speed. The workflow consists of only a few steps: prepare working solution, mix sample with assay reagent, incubate, and read. The integrated reagent calculator automatically determines the required dye and buffer volumes, reducing preparation errors and improving reproducibility.

The instrument can store up to 1,000 sample results, allowing users to review historical data directly on the device. Data export is supported via USB flash drive, USB cable, or Wi-Fi transfer.

With a compact footprint and lightweight design, the Qubit 4 is ideal for crowded laboratory benches and mobile lab setups.

Technical Innovation

The system uses dual LED excitation technology (blue and red channels) combined with highly sensitive photodiode detection. This allows precise discrimination of fluorescence signals across different assay types.

The optical system is optimized to ensure minimal background noise, enhancing measurement accuracy even at very low concentrations. The warm-up time is short, typically under 35 seconds, enabling fast startup and minimal downtime.

Safety and Reliability

The Qubit 4 Fluorometer is designed for long-term laboratory use with stable performance and minimal maintenance requirements. It complies with international laboratory safety and electrical standards and is engineered for continuous daily operation.

Its closed-tube assay system also minimizes contamination risk, making it suitable for clinical and regulated laboratory environments.

Technical Specifications
