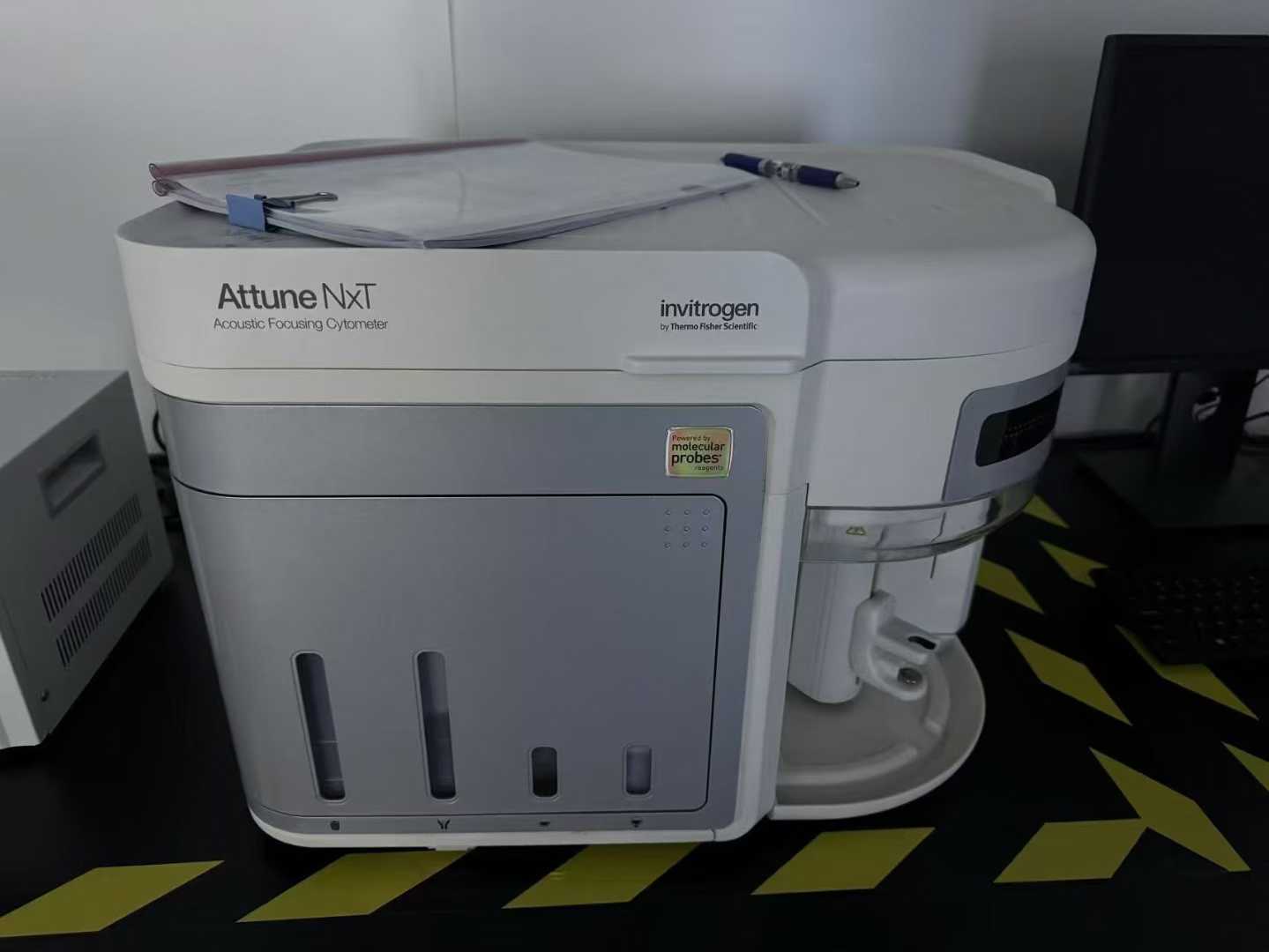

Invitrogen Attune NxT 2-Laser 7-Color Flow Cytometer

The Invitrogen Attune NxT 2-Laser 7-Color Flow Cytometer stands as a transformative benchtop solution in modern cell analysis, meticulously engineered by Thermo Fisher Scientific to overcome the traditional trade-offs between high-speed acquisition and data quality. At the heart of this instrument is its patented Acoustic-Assisted Hydrodynamic Focusing technology, which utilizes ultrasonic radiation pressure to precisely align cells into a tight stream before they enter the sheath flow. This innovation decouples cell alignment from the sample flow rate, allowing the system to achieve a true data acquisition speed of up to 35,000 events per second with a maximum electronic speed of 65,000 events per second, which is up to ten times faster than many conventional flow cytometers without compromising signal resolution or increasing coincidence rates. The 2-laser, 7-color configuration typically pairs a 488 nm blue solid-state laser with a 405 nm violet solid-state laser, both of which are spatially separated and require no warm-up time thanks to an onboard thermoelectric cooler and instant-on simmer mode. This optical layout supports a robust panel of fluorescent dyes, including FITC, PE, PerCP, PE-Cy7, BV421, BV510, and APC, making it an ideal, cost-effective entry point for core immunophenotyping assays such as differentiating CD3, CD4, CD8, CD19, and CD56 positive populations in immunological research. The fixed optical alignment using pre-aligned welded fibers eliminates the need for daily user maintenance or calibration, ensuring that laboratories can consistently produce publication-quality data with minimal downtime, while the 10 x 50 μm flat-top laser profile ensures uniform illumination across the cell stream, maintaining a coefficient of variation of less than 3% for fluorescence resolution.

Beyond its core optical and fluidic innovations, the Attune NxT system is designed with a highly intuitive workflow and exceptional sample handling flexibility that caters to both novice users and experienced researchers. The fluidics system employs a positive-displacement syringe pump for precise volumetric analysis, meaning it can directly calculate absolute cell concentrations (events/µL) without the need for expensive counting beads like AccuCount or TruCount microspheres. Sample delivery is remarkably flexible, accommodating volumes from as little as 20 µL up to 4 mL, and supporting various container types ranging from standard 12x75 mm tubes and 1.5 mL/2.0 mL microcentrifuge tubes to 96-well deep-well plates when equipped with the optional CytKick autosampler. The flow rate is software-controlled across six adjustable speeds from 12.5 µL/min to 1,000 µL/min, allowing users to gently analyze fragile primary cells or rapidly process high-concentration screening plates. A standout feature of the instrument is its resistance to clogging; the engineered sample delivery pathway and the precise nature of acoustic focusing significantly reduce the likelihood of blockages when running "difficult" samples, such as large cells, sticky cells, unlysed whole blood, bone marrow, or fine needle aspirates. Furthermore, the Attune NxT Software provides a user-focused interface with automated features for compensation matrix generation, real-time data monitoring, and customizable experiment templates, and it is fully compliant with 21 CFR Part 11 regulations for laboratories operating under GMP or GLP environments. The software also allows for bubble detection to protect sample integrity and offers seamless one-click conversion between tube and plate reading modes without requiring a system restart or re-qualification.

The true value of the Attune NxT 2-Laser 7-Color configuration lies in its role as a highly capable, space-efficient workhorse that can evolve with a laboratory's needs, making it a staple in immunology, cancer research, stem cell biology, microbiology, and translational medicine. Its compact footprint, measuring approximately 40 cm in height, 58 cm in width, and 43 cm in depth, allows it to fit comfortably on a standard laboratory bench or even inside a biosafety cabinet, facilitating sterile sorting and analysis of sensitive cell cultures. The system's ability to detect rare events is greatly enhanced by the high-speed acquisition and low background noise, which is critical for applications such as circulating tumor cell (CTC) analysis, side population (SP) stem cell assays, and detecting phosphorylated signaling proteins. Additionally, the sensitivity of the detectors is rigorously quantified, with a fluorescence sensitivity of ≤80 MESF for FIT, ≤30 MESF for PE, and ≤70 MESF for APC, and the forward and side scatter detectors are optimized to easily distinguish lymphocytes, monocytes, and granulocytes in lysed whole blood, as well as differentiate platelets from noise. Because the Attune NxT platform is modular, starting with the 2-laser, 7-color setup does not limit future growth; the instrument can be field-upgraded to add a third (561 nm yellow or 532 nm green) and fourth (637 nm red) laser, expanding the detection capability up to 16 parameters across 14 colors. This future-proof design, combined with low daily fluid consumption (approximately 1.8 L of sheath fluid per day) and automated maintenance cycles that complete start-up and shutdown cleaning in under 15 minutes, ensures that the Attune NxT 2-Laser 7-Color Flow Cytometer remains a reliable, efficient, and economically smart investment for any research laboratory aiming to produce high-fidelity multiparametric data with speed and precision.
