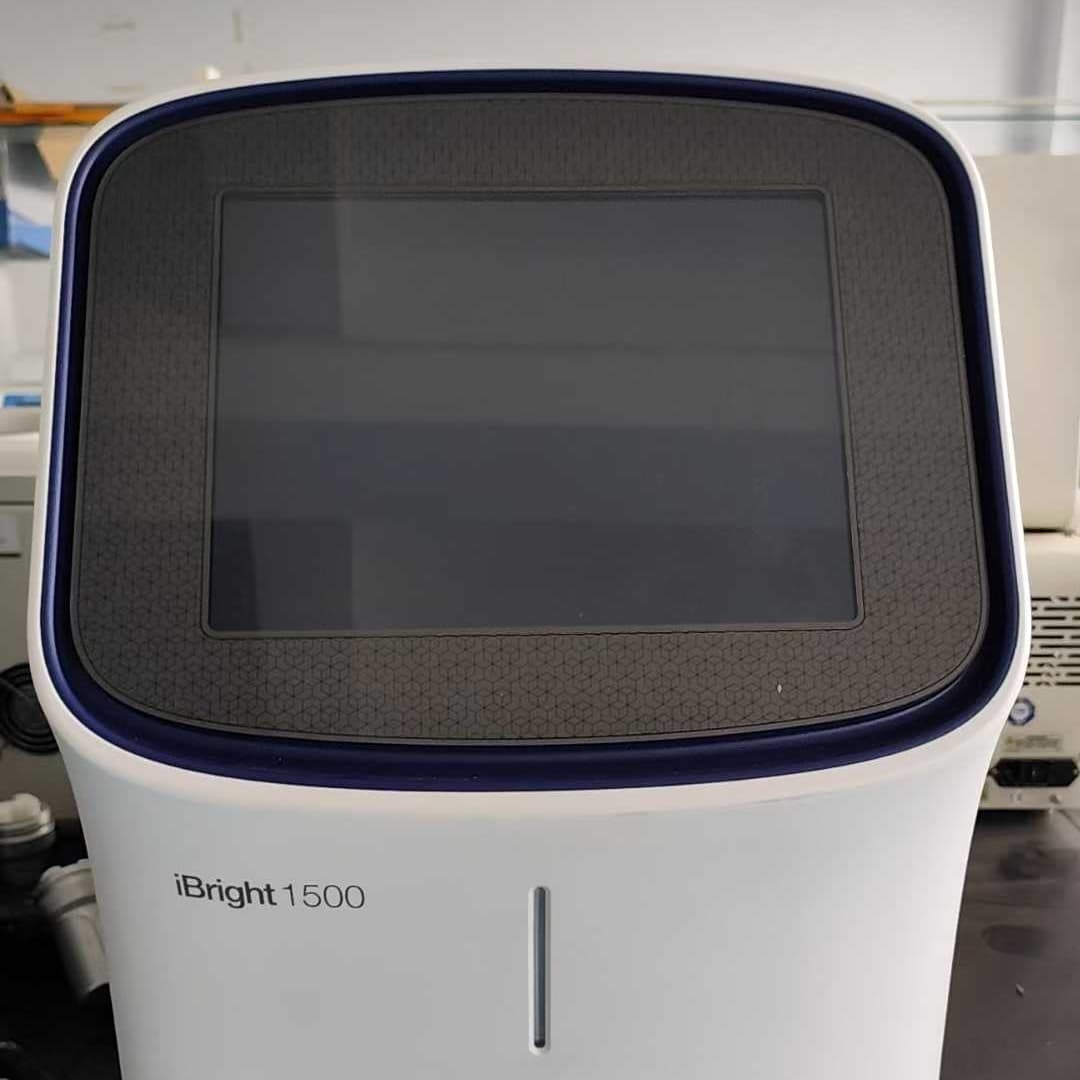

Thermo Scientific™ Invitrogen™ iBright™ FL1500 Imaging System

The Thermo Scientific Invitrogen iBright FL1500 Imaging System is a premier, all-in-one digital imaging platform meticulously engineered to revolutionize the visualization and analysis of Western blots and electrophoretic gels in modern life science research. Designed to bridge the gap between traditional darkroom photography and advanced digital imaging, this high-performance system integrates superior optical hardware with intelligent automation and an intuitive user interface, making it accessible for both novice students and experienced core facility managers. At its core, the FL1500 is powered by a high-sensitivity 9.1-megapixel (MP) cooled CCD camera, which provides exceptional resolution and a wide dynamic range crucial for capturing subtle differences in signal intensity. Paired with a fast f/0.95 aperture lens, the system maximizes light collection, ensuring that even the faintest chemiluminescent or fluorescent signals are detected with clarity. A standout feature of the iBright FL1500 is its robust multiplexing capability; equipped with five distinct fluorescence channels supported by a suite of six excitation and six emission filters, the instrument enables researchers to perform multi-color fluorescent Western blotting. This allows for the simultaneous detection of up to four different target proteins on a single membrane, alongside a visible protein marker, eliminating the need for laborious stripping and reprobing cycles and preserving valuable sample integrity while providing internal loading controls for more accurate quantification.

Operationally, the iBright FL1500 is built around a massive 12.1-inch high-definition capacitive touchscreen that serves as the command center for the entire instrument. This large, responsive display not only provides a vivid preview of samples but also houses a built-in computer, meaning the system can be operated entirely independently without the immediate need for an external PC, although connection via Ethernet or Wi-Fi is available for enhanced data management. The user experience is defined by smart, automated algorithms designed to eliminate guesswork and save time. Smart Exposure technology quickly scans the sample to calculate the optimal exposure time, preventing the common pitfalls of under-exposure or over-saturation. Complementing this is the innovative Smart Range HDR (High Dynamic Range) function, which merges optimized short and long exposures into a single composite image. This captures an extended linear dynamic range, ensuring that both high-abundance and low-abundance protein bands on the same blot are rendered perfectly without saturation, which is critical for reliable quantitative densitometry. Further enhancing its utility, the system features automated mechanical functions including autofocus, automatic zoom (1x to 8x, combining mechanical and digital zoom), and a unique ±10° motorized sample rotation. Unlike digital rotation, which can cause pixelation, this mechanical rotation ensures that rectangular membranes are perfectly aligned with the camera sensor, optimizing image quality and simplifying lane analysis.

Versatility is a hallmark of the iBright FL1500, extending its utility far beyond just Western blotting. The system features a safe, UV-free green LED transillumination light source (470–550 nm) for visualizing nucleic acid gels stained with dyes like SYBR Safe or GelRed, protecting users from harmful UV radiation and preventing DNA damage. It also supports epi-white and near-infrared (NIR) LED illumination for various chromogenic and fluorescent applications. For researchers working with cell cultures, the FL1500 can be configured for colony counting or cell confluence analysis in microplates. Data handling is secure and flexible; images can be saved in proprietary G2i format or standard TIFF, JPEG, and PNG formats. With dual USB 2.0 ports, Ethernet, and optional Wi-Fi connectivity, data transfer is seamless, supporting direct export to USB drives, network servers, or the Thermo Fisher Cloud. Furthermore, the onboard software facilitates direct densitometric analysis, including lane and band detection, background subtraction, and relative/absolute quantification, with the option to upgrade to the iBright Analysis Secure Software for environments requiring 21 CFR Part 11 compliance. By combining a safe, UV-free workflow with powerful multiplexing capabilities and intelligent automation, the Thermo Scientific Invitrogen iBright FL1500 Imaging System stands as an indispensable tool for any laboratory demanding high-quality, reproducible, and publication-ready images from their protein and nucleic acid analyses.

Key Technical Specifications:
