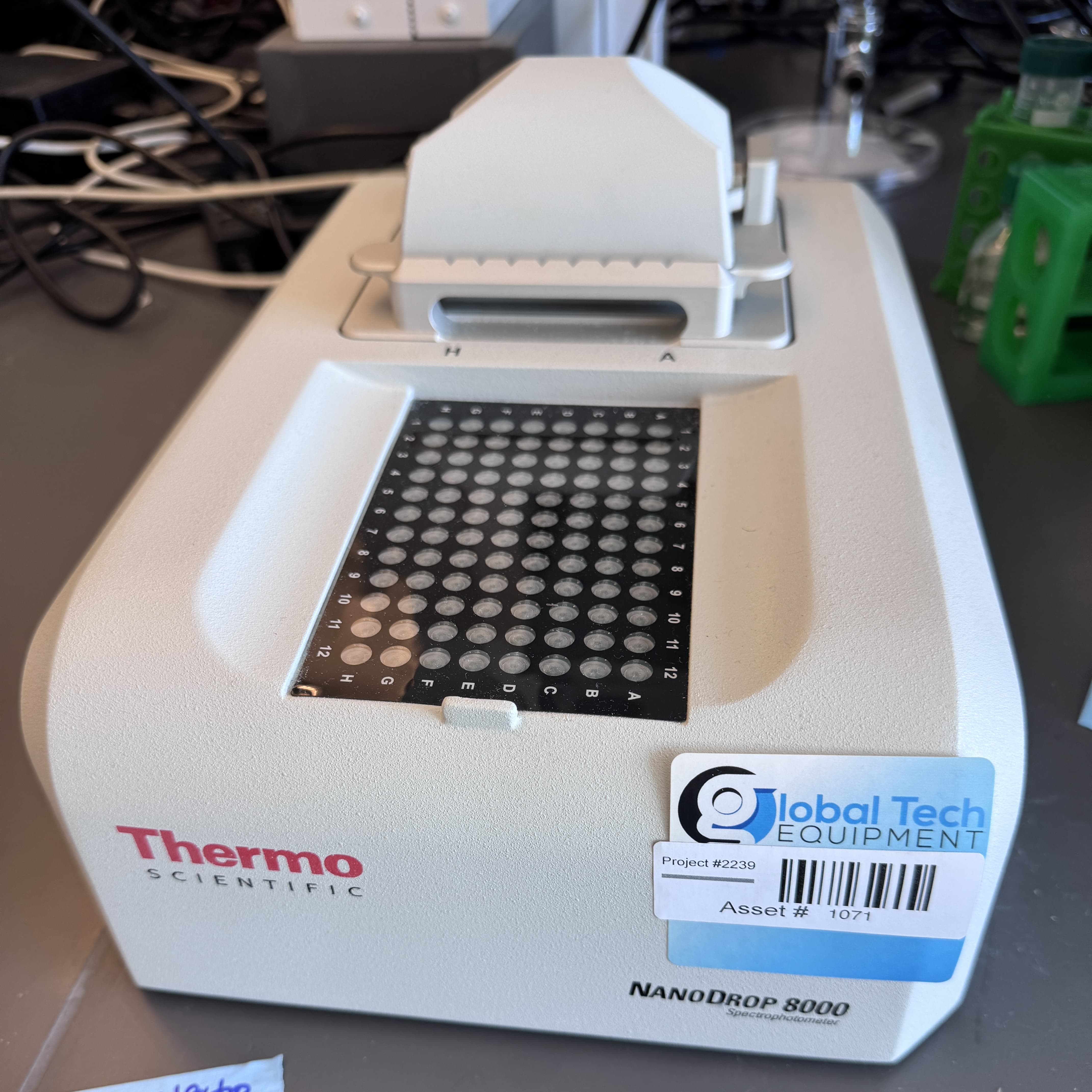

Thermo Scientific NanoDrop 8000 Spectrophotometer

Brief Description:Thermo Scientific NanoDrop 8000 Spectrophotometer

PRODUCT CATEGORY

Related Articles

Detailed Introduction

Thermo Scientific NanoDrop 8000 Spectrophotometer – Product Overview

The Thermo Scientific NanoDrop 8000 Spectrophotometer is a high-throughput micro-volume UV-Vis spectrophotometer designed for rapid and accurate quantification of nucleic acids and proteins. Developed by Thermo Fisher Scientific, the NanoDrop 8000 expands the traditional NanoDrop platform into an eight-sample simultaneous measurement system, significantly improving laboratory efficiency in high-throughput environments.

Unlike conventional cuvette-based spectrophotometers, the NanoDrop 8000 uses a micro-volume measurement technology that requires only 1–2 µL of sample per well. This eliminates the need for cuvettes or dilution steps in most applications, saving valuable sample material and reducing experimental time.

The system is equipped with eight independent optical channels, allowing users to measure up to eight samples simultaneously. This parallel detection capability is particularly valuable in genomics, proteomics, and molecular biology laboratories where large sample volumes must be processed quickly and consistently.

The NanoDrop 8000 uses UV-Vis absorbance technology across a broad wavelength range, enabling accurate quantification of DNA, RNA, and proteins, as well as assessment of sample purity through A260/A280 and A260/A230 ratios. This ensures reliable downstream performance in sensitive applications such as PCR, sequencing, and cloning.

Its intuitive software interface provides fast data acquisition, automatic calculations, and easy export of results. The system is designed for simplicity, requiring minimal training while delivering high-quality, reproducible data.

Typical applications include:

  • DNA and RNA quantification

  • Protein concentration measurement

  • Oligonucleotide analysis

  • Purity assessment of biological samples

  • PCR and sequencing sample preparation

  • High-throughput molecular biology workflows

The NanoDrop 8000 is widely used in academic, pharmaceutical, biotech, and clinical research laboratories due to its efficiency, accuracy, and minimal sample consumption.


Product Specifications

Item Specification
Product Name Thermo Scientific NanoDrop 8000
Manufacturer Thermo Fisher Scientific
System Type Micro-volume UV-Vis Spectrophotometer
Measurement Channels 8 independent sample positions
Sample Volume 1–2 µL per measurement
Wavelength Range ~220–750 nm
Detection Technology UV-Vis absorbance
Light Source Xenon flash lamp
Detector Type Linear CCD array
Measurement Time ~20–30 seconds for 8 samples
Data Output DNA, RNA, protein concentration
Purity Ratios A260/A280, A260/A230

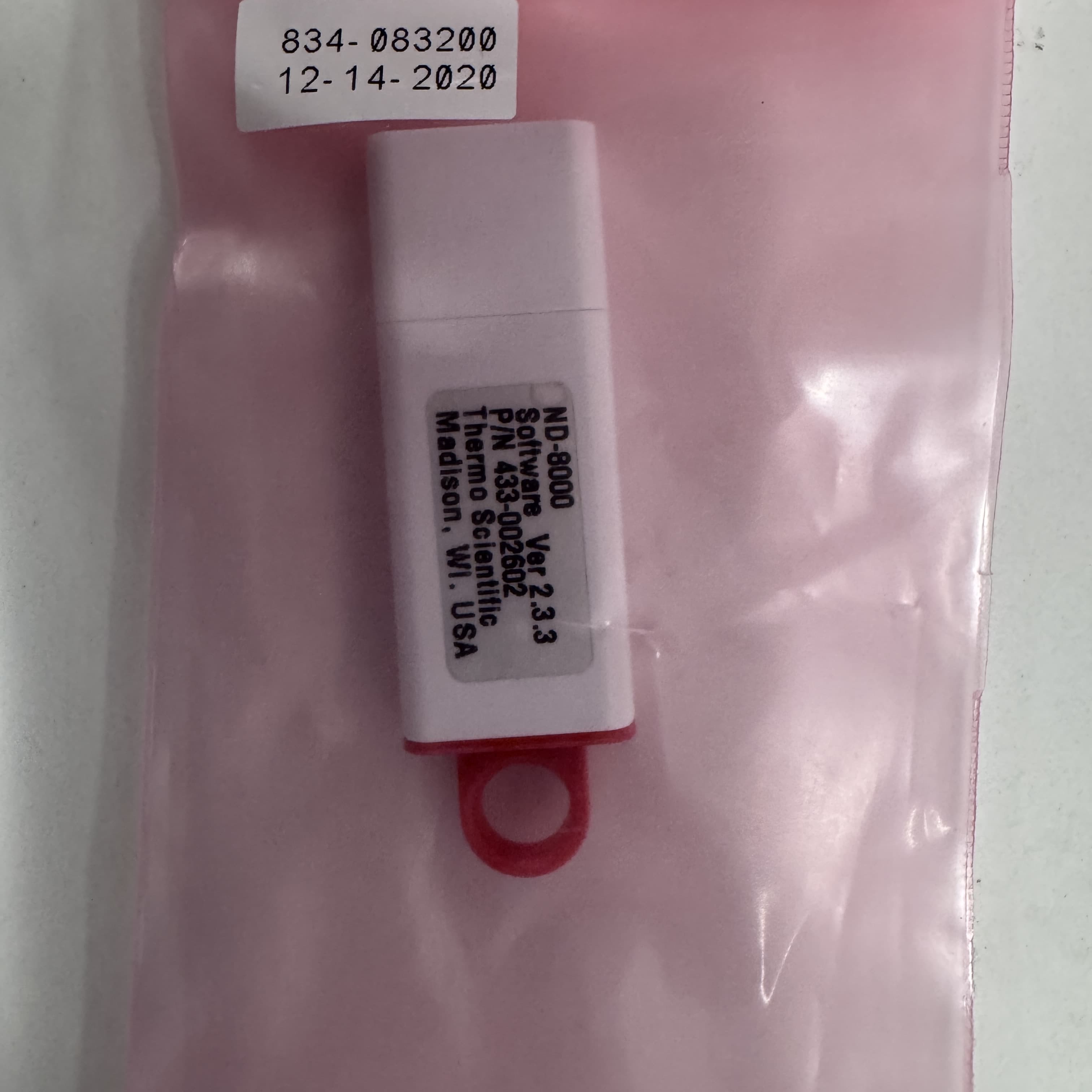

Software NanoDrop software suite
Operation Mode Standalone PC-based system
Pathlength Variable (auto-adjusting)
Calibration Automatic wavelength calibration
Applications Genomics, proteomics, molecular biology
Connectivity USB interface
Power Supply Standard laboratory electrical input
Instrument Design Benchtop, compact multi-sample system

The NanoDrop 8000 is an ideal solution for laboratories requiring high-throughput nucleic acid and protein quantification with minimal sample consumption. Its multi-sample capability and rapid workflow significantly enhance productivity in modern life science research environments.
