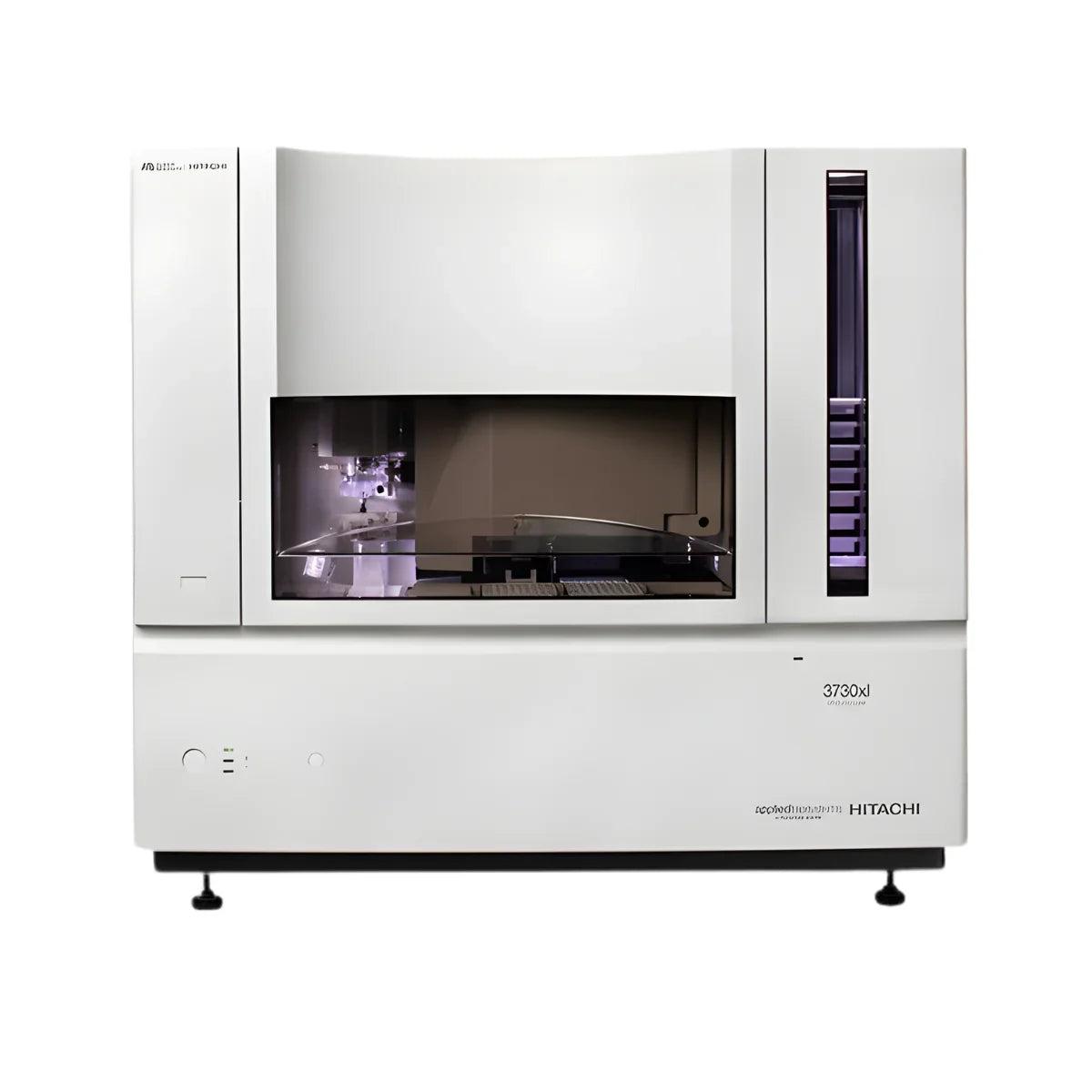

ABI 3730xl DNA Analyzer – Product Introduction

The ABI 3730xl DNA Analyzer (Applied Biosystems 3730xl DNA Analyzer) is a high-throughput capillary electrophoresis genetic analysis platform developed by Applied Biosystems, now part of Thermo Fisher Scientific. It is widely used in research institutes, universities, biotechnology companies, forensic laboratories, and clinical research centers for automated DNA sequencing and fragment analysis applications.

Based on advanced capillary electrophoresis technology, the ABI 3730xl DNA Analyzer provides reliable, high-quality Sanger sequencing performance with excellent accuracy, reproducibility, and throughput. Compared with traditional slab-gel sequencing systems, the capillary-based design significantly improves separation efficiency, reduces manual operation requirements, and enables laboratories to process large numbers of DNA samples efficiently.

The instrument is equipped with 96-capillary array technology, allowing simultaneous analysis of up to 96 samples per run. This high-throughput configuration makes it particularly suitable for large-scale sequencing projects, including genome mapping, mutation detection, plasmid sequencing, microbial identification, SNP analysis, and molecular biology research.

The ABI 3730xl DNA Analyzer uses fluorescently labeled dye terminator chemistry for DNA sequencing. During operation, DNA fragments are separated according to size through polymer-filled capillaries, and laser-induced fluorescence detection technology identifies fluorescent signals generated by labeled nucleotides. The system then converts these signals into high-quality sequence data through dedicated analysis software.

For fragment analysis applications, the ABI 3730xl supports accurate sizing and quantification of DNA fragments, making it valuable for applications such as microsatellite analysis, STR genotyping, linkage analysis, and population genetics studies. Its flexible configuration allows researchers to perform both sequencing and fragment analysis on the same platform.

The system is designed for long-term laboratory operation with stable optical performance, automated sample loading, and integrated temperature control. The robust design and proven reliability have made the ABI 3730xl one of the most commonly used capillary electrophoresis DNA analyzers worldwide.

Today, refurbished ABI 3730xl DNA Analyzers remain popular in many laboratories because they offer an economical solution for high-quality Sanger sequencing. A professionally refurbished system can provide excellent analytical performance at a significantly lower cost compared with purchasing a new genetic analyzer, making it attractive for academic research laboratories, biotechnology startups, and testing facilities.

ABI 3730xl DNA Analyzer Specifications

The ABI 3730xl DNA Analyzer remains a benchmark platform for laboratories requiring dependable Sanger sequencing and fragment analysis capabilities. Its combination of high throughput, accurate data quality, and operational stability continues to make it a valuable instrument in modern molecular biology research.
